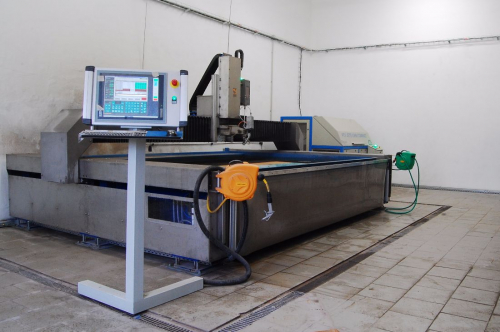

illustration photo

Uni Jet model range

  • wide range of work area formats from 1x1m up to 4,5x12m
  • one or two Z-supports
  • basic steel load-bearing structure with AL port
  • linear motion with ball bearing trays
  • hardened racks and stainless steel pinions
  • precision planetary gearboxes powered by servo-motors
  • stainless steel casing
  • components from prestigious suppliers

Maximum range of optional equipment:

Positioning accuracy +/- 0,04mm / 300mm
Repeatability +/- 0,03mm
Maximum working speed 60 000mm/min
Maximum transversal speed 20 000mm/min
Z-axis elevation 300mm
Qty of Z-supports 1
Qty. of cutting heads 1 - 8
Portal width 4.500mm
Table length 2.500mm

Possibility to add a special head for cutting bevel elimination:
